Active GNSS M20047-1

M20047-1

Compact, all-in-one GNSS antenna module with built in filter and LNA.

Frequency

1559 – 1609 MHz

Efficiency

65%

Dimension

7.0 x 7.0 x 0.9 mm

Benefits

Why M20047-1?

4.68mW power consumption

65% efficiency

1.5-3.3V power supply

Simply more than an antenna.

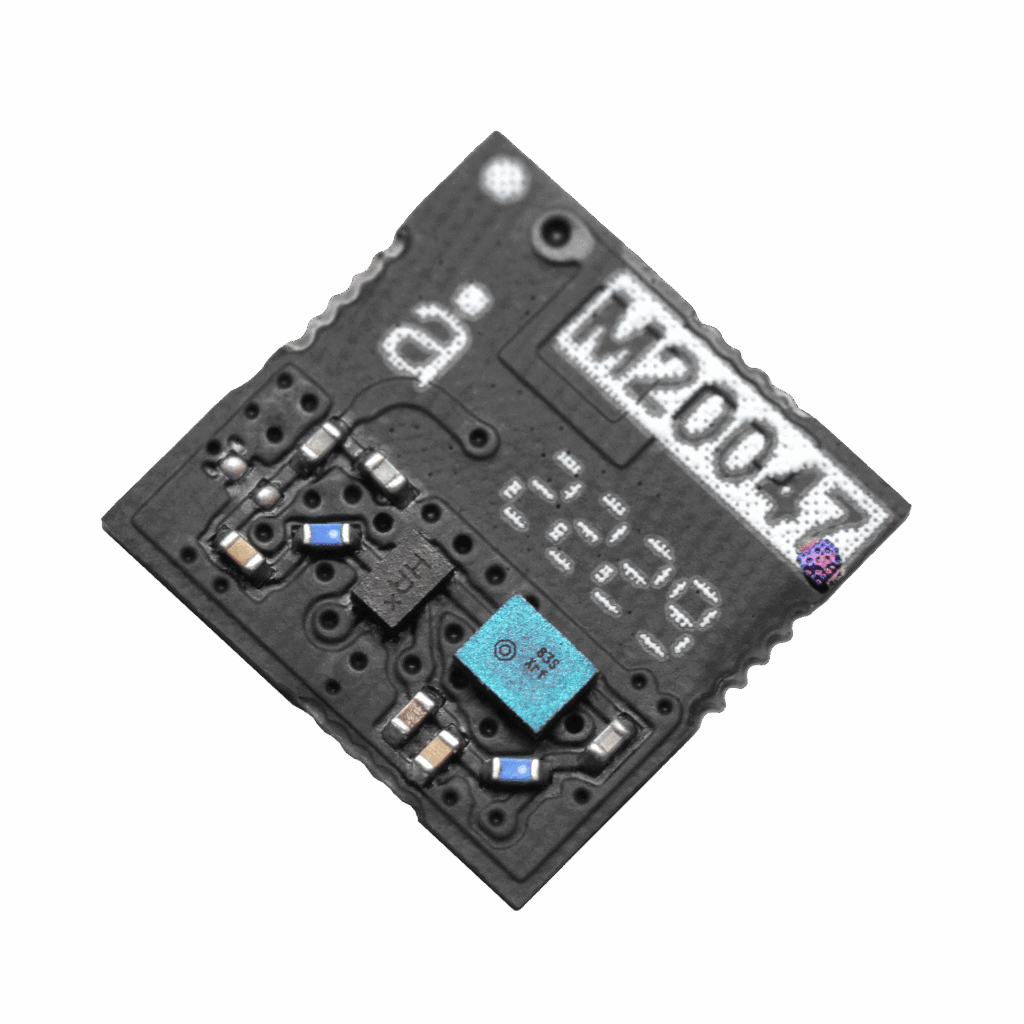

The Active GNSS Antenna combines an antenna, front-end (an LNA, SAW) and matching network all in a single part.

M20047-1 provides excellent omnidirectional performance (compared with a ceramic patch antenna) in an ultra-compact form. Measuring just 7.0 x 7.0 x 0.9mm, it’s ultra-compact and can be placed on the edge of the PCB.

Download the Active GNSS M20047-1 datasheet, 3D file, footprint and more.

Superior performance

Equipped with a built-in filter, Active GNSS is designed as standard to reject LTE, Cellular, GSM, WCDMA, WLAN, Bluetooth, WiMAX and LTE2600 bands.

Tested and designed by our integration and application specialists, the Active GNSS Antenna comes ready to perform, whatever your application

Simplicity

Simplifies your design-in process, minimises your bill of materials, reference design and evaluation kit available for new designs.

Application

M20047-1 supports:

GPS

GLONASS

Galileo

Beidou

Resources

Active GNSS Antenna datapack

In this datapack:

  • M20047-1 Product Specification
  • M20047-1 Efficiency
  • M20047-1 Benefits
