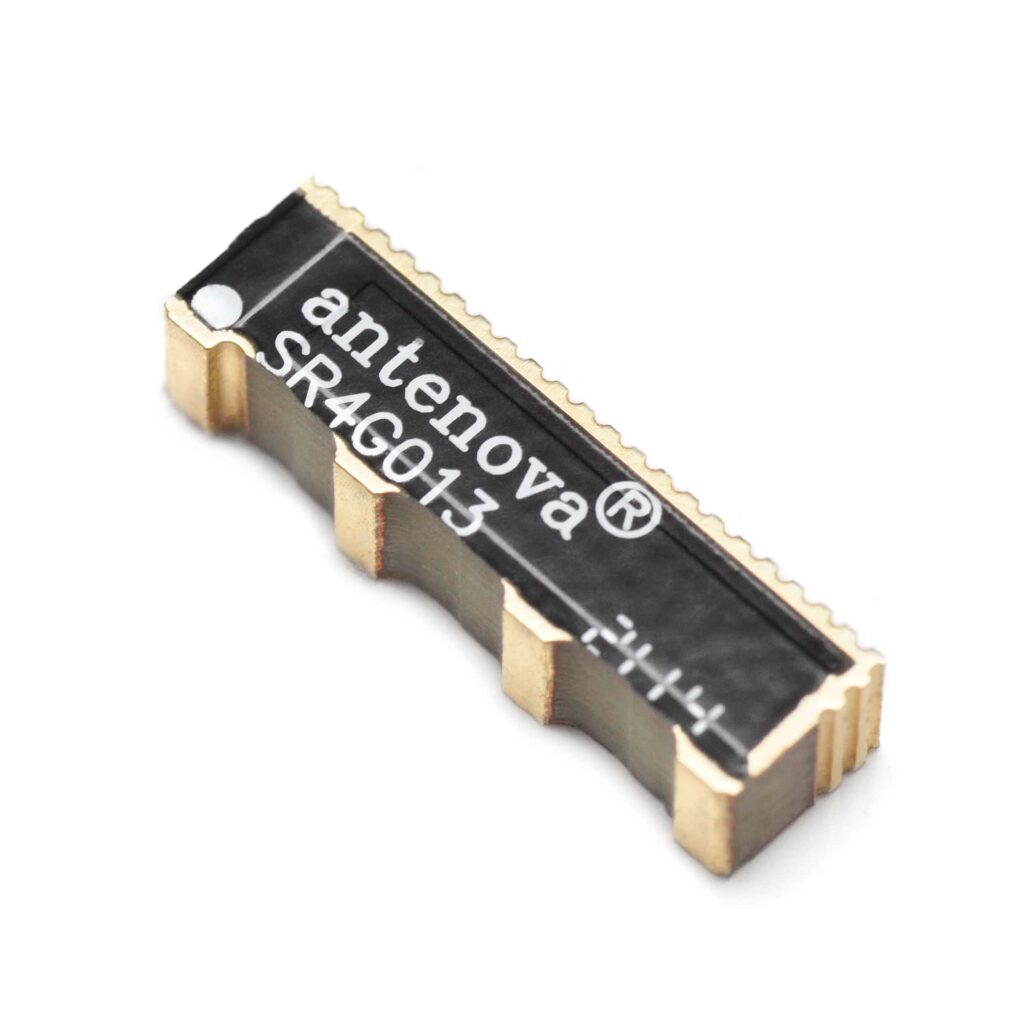

1559-1609 MHz: Beltii, miniature GNSS antenna
P/N SR4G013

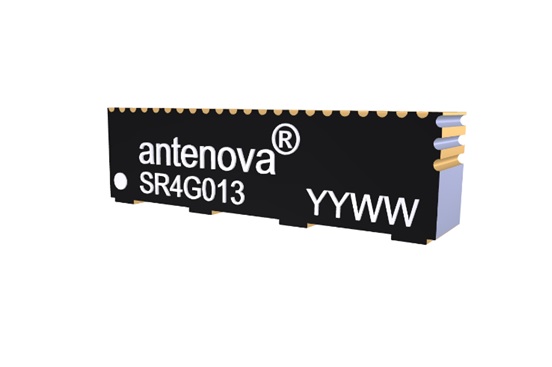

Beltii GNSS antenna (2)
  • Frequency: 1559-1609MHz
  • Dimensions: 15.6mm x 3.3mm x 4.4mm
  • Efficiency: 60%

Beltii operates with all global public satellite constellations, and at 15.6mm x 3.3mm x 4.4mm, will be one of the smallest solutions out there for small PCBs. It uses a small ground plane and can be placed in a corner without ground clearance. It’s suitable for wearables, trackers, drones, navigation and all small portable devices.


Beltii Technical Specification
Beltii SR4G013 Footprint
Beltii SR4G013 3D Model



Delivery Information

Antennas and GPS modules - estimated delivery date of 5-7 days

Evaluation boards - estimated delivery date of 7-14 days

* All antennas are sold in packs of 5
