Mitis

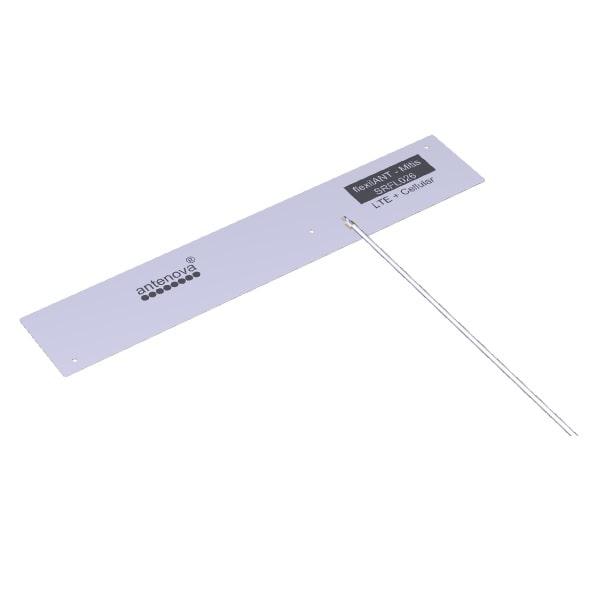

SRFL026 - Internal 4G LTE / Cellular / LPWA / NB-IoT Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
4G LTE / Cellular / LPWA / NB-IoT
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFL026 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 110.0 × 20.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
4G LTE / Cellular / LPWA / NB-IoT
| Frequency (MHz) | 698-798, 824-960, 1710-2170, 2300-2400, 2500-2690 |
|---|---|
| Return Loss (dB) | ~-5.5, ~-10.0, ~-7.0, ~-7.0, ~-5.5 |
| VSWR | ~3.20:1, ~1.95:1, ~1.90:1, ~2.10:1, ~3.10:1 |
| Efficiency (%) | ~55,~65,~65,~55,~70 |
| Average Gain (dB) | ~-1.5,~-1.6,~-1.7,~-1.7,~-1.4 |
| Peak Gain (dBi) | ~2.5,~2.3,~3.5,~4.0,~4.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A flexible antenna for all 4G/ LTE bands: LTE 700, GSM850, GSM900, DCS1800, PCS1900, WCDMA2100, LTE B7 (2500-2690MHz) and LTE B40 (2300 – 2400MHz). Ideal for smart meters, network devices, Pico-basestations, remote monitoring, POS terminals, M2M, and IoT applications.
Available in 100mm and 200mm cable lengths. Other cable lengths are available, but minimum order quantities apply.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
Wide band 4G LTE Antenna
698-2690 MHz Frequency Range
up to 70% 4G LTE Efficiency
4.5 dBi 4G LTE Peak Gain
Applications
Smart Home
Wearables
Mobile Networks
Entertainment and Multimedia
IoT - Internet of Things
Logistics and Shipping
Smart Cities
Industrial IoT & Monitoring
Smart Farming
Fleet Management
Medical and Healthcare
Autonomous Driving
Drone Operation
Security and Surveillance
Gaming and Virtual Reality
Cellular Networks
Mission Critical Communications
Transportation
GIS - Geographic Information System
Cartographic
Hazard Mitigation
Machine Control
Automation
Agriculture
Construction
Mining Industry
Unmanned Vehicles
Surveying
Defense
Aerial Photogrammetry
Logistics
Asset Tracking and Security
Location Based Services
Civil Applications
Road Applications
Autonomous Applications
Mobile Applications
Automotive
Telecommunication
Data Processing
Broadband Communications
Remote Monitoring and Control
Wireless Security System
Energy Monitoring
Smart Metering
Smart Lighting
Air Quality and Pollution Monitoring
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Waste Management
Water Metering & Management
Government & Public Safety
Building Control
M2M - Machine to Machine
Telemetry / Telematics
Manufacturing
Video Streaming
Smart Grid
Private Cellular Networks
Electricity Metering & Management
Resources Management
Digital Signage
Routers
Gateways & Data Terminals
Utilities
First Responder Fleets
C-V2X - Cellular Vehicle to Everything
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
