Cellular, 3G, LTE and MIMO: Similis SMD antenna
P/N SR4C005

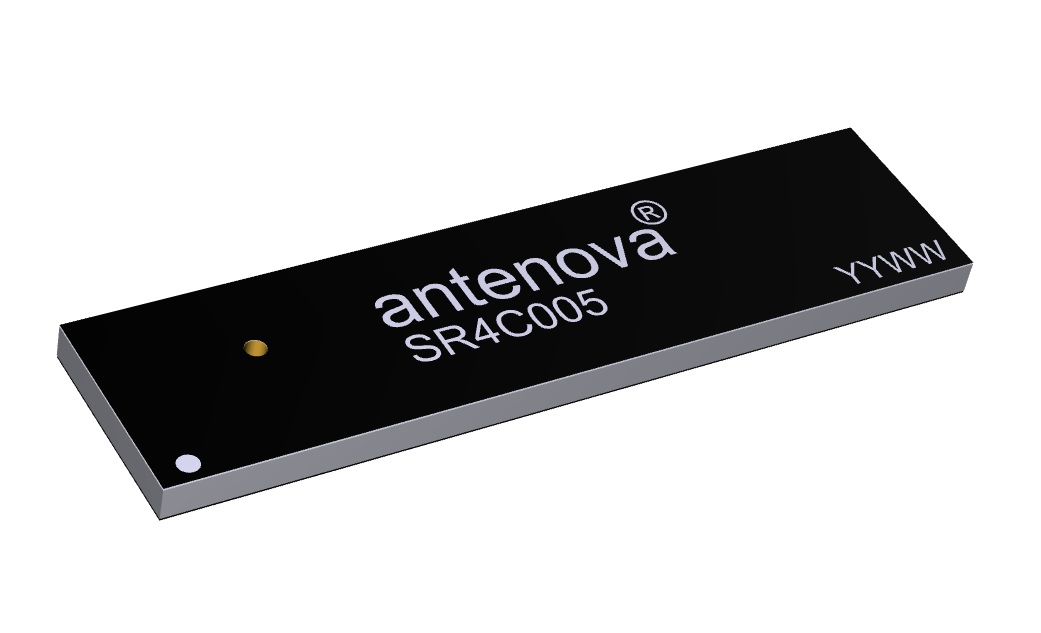

Similis antenna
  • Frequency: 824 - 960MHz, 1710 - 1990MHz, 2110 - 2170MHz, 2300 - 2400MHz, 2500 - 2690MHz
  • Dimensions: 40.0 x 10.0 x 1.6 mm
  • Efficiency: 45% at 824 - 960MHz, 60% at 1710 - 1990MHz, 55% at 2110 - 2170MHz, 60% at 2300 - 2400MHz, 65% at 2500 - 2690MHz

A useful antenna with an exceptionally low profile – it’s just 1.6mm high. It is ideal for 3G single and MIMO antenna systems, applications such as  Femto / Pico base stations, portable devices, remote monitoring, smart meters, network devices and wearable devices.


Similis Product Specification
Similis SR4C005 Footprint
Similis SR4C005 3D Model



Delivery Information

Antennas and GPS modules - estimated delivery date of 5-7 days

Evaluation boards - estimated delivery date of 7-14 days

* All antennas are sold in packs of 5
