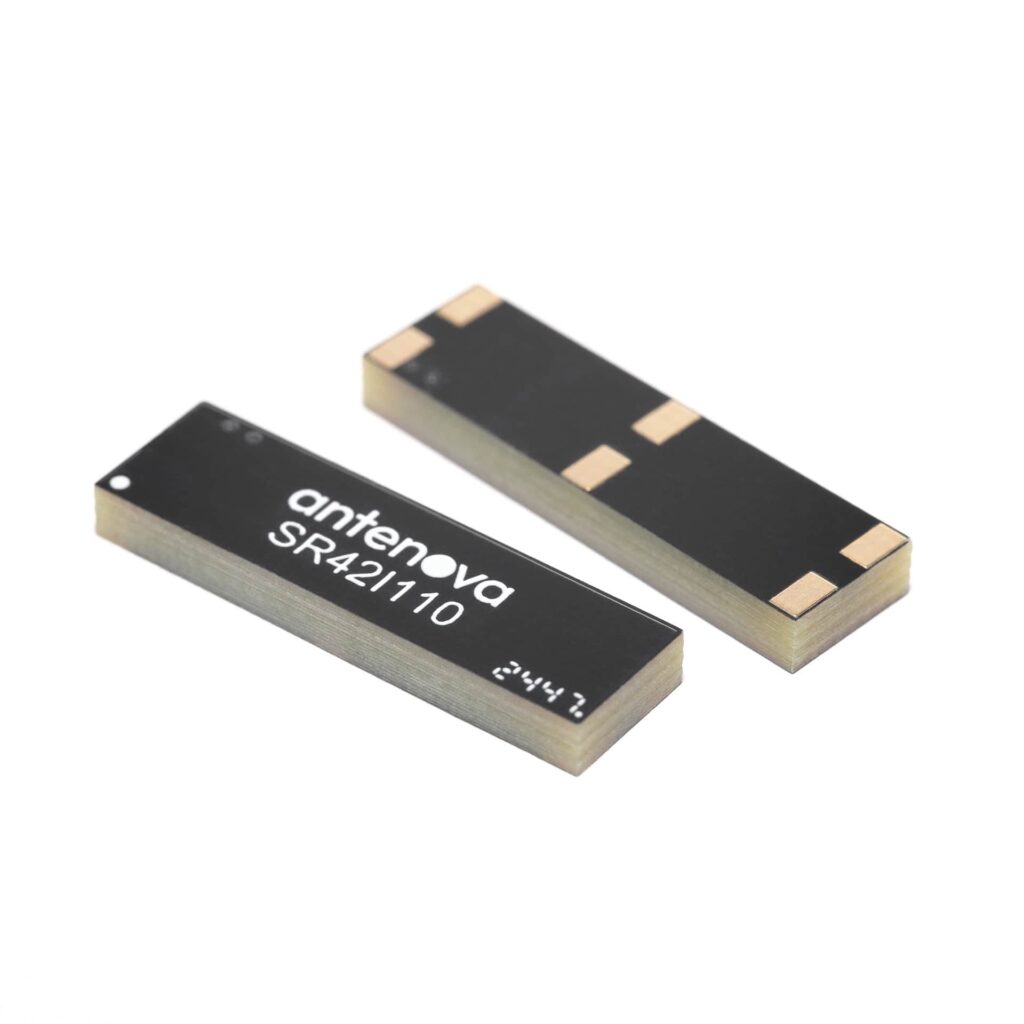

SR42I110 - Embedded 868 & 915 MHz ISM / Sigfox / LoRa / LPWA Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR42I110 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 26.0 × 7.6 × 3.1 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Frequency (MHz) | 863-870, 902-928 |
|---|---|
| Return Loss (dB) | ~-12.36, ~-13.45 |
| VSWR | ~1.64:1, ~1.54:1 |
| Efficiency (%) | ~72.5,~77.9 |
| Average Gain (dB) | ~-1.4, ~-1.1 |
| Peak Gain (dBi) | ~2.2, ~2.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A low-profile antenna for Bluetooth®, Wi-Fi/802.11a/b/g/n & ZigBee. It uses a ground plane to radiate efficiently and requires a clearance under the antenna.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
2.8 dBi 868 / 915 MHz ISM Peak Gain
up to 77.9% 868 / 915 MHz ISM Efficiency
Applications
Embedded Antenna Solutions
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
