Latona-L
SR4C033-L - Embedded LP-WAN / NB-IOT / ISM / LoRa / SigFox / Weightless-P Passive FR4 Chip Surface Mount SMD Antenna
1×
LP-WAN / NB-IOT / ISM / LoRa / SigFox / Weightless-P
| Mounting | SMD Surface Mount Laminate |
|---|---|
| Product P/N | SR4C033-L |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 20.0 × 11.0 × 1.6 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
LP-WAN / NB-IOT / ISM / LoRa / SigFox / Weightless-P
| Frequency (MHz) | 791-862, 824-960 |
|---|---|
| Return Loss (dB) | ~-9.0, ~-7.0 |
| VSWR | ~2.1:1, ~2.6:1 |
| Efficiency (%) | ~60,~65 |
| Average Gain (dB) | ~-1.5, ~-1.5 |
| Peak Gain (dBi) | ~0.5, ~0.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description

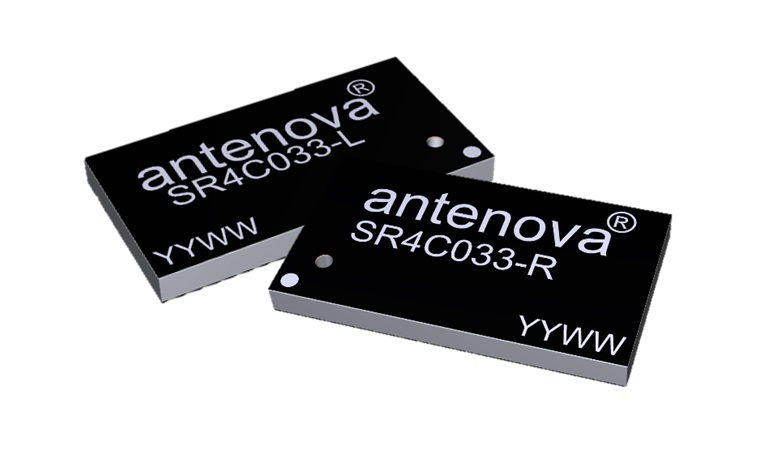

Latona is for LP-WAN applications including NB-IOT / ISM / LoRa / SigFox / Weightless-P where a small robust antenna is needed. It uses an innovative space-saving design and is placed in a corner. We offer Left and Right options so that you can optimise placement.
Key Features
Optimised for European Cellular Bands
Ground Plane Dependent
0.8 dBi ISM Peak Gain
up to 65% ISM Efficiency
791-960 MHz Frequency Range
Applications
Embedded Antenna Solutions
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
