Pharaoh

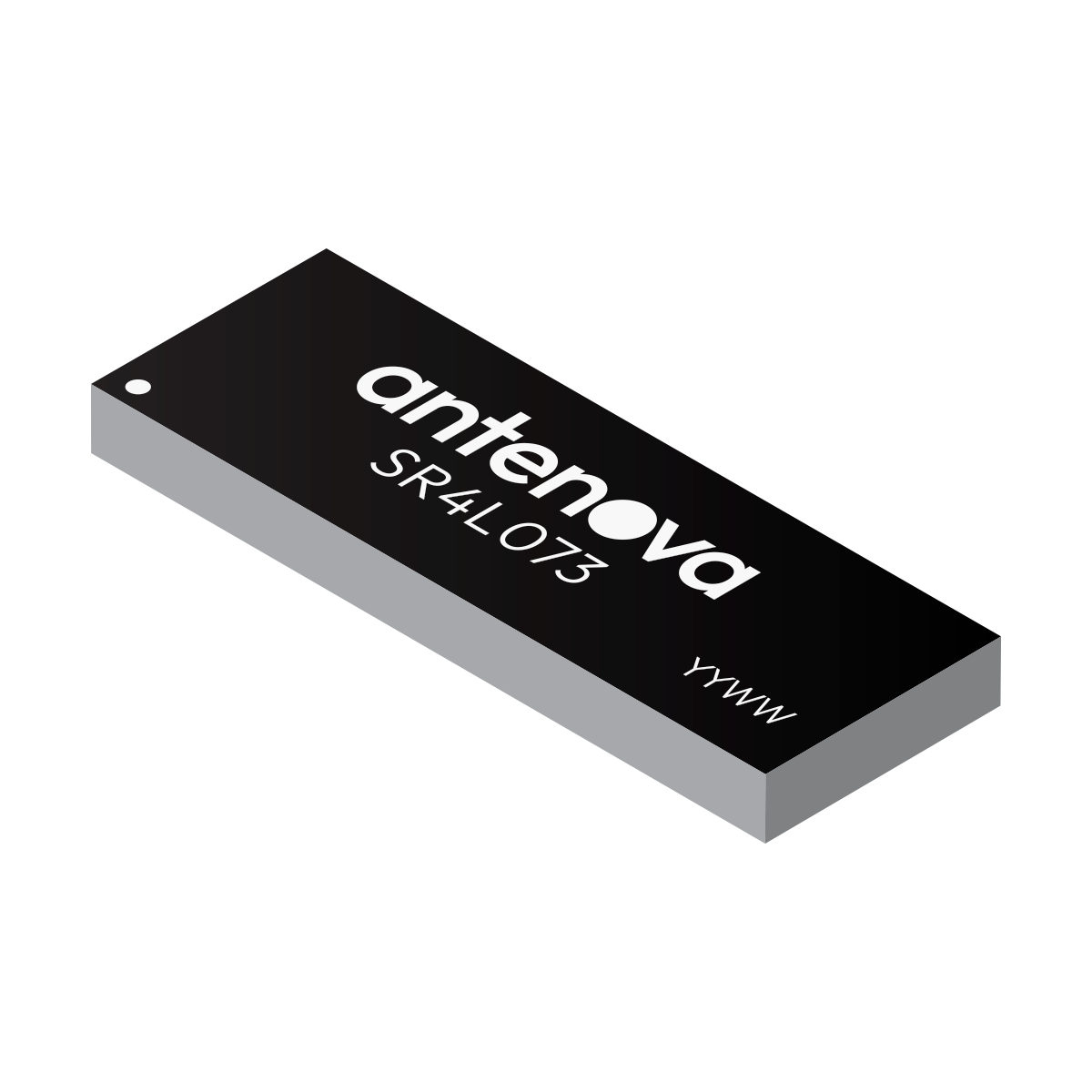

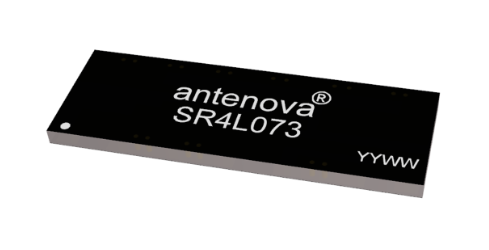

A high efficiency antenna designed for small size PCBs.
698 – 824 MHz / 824 – 960 MHz / 1710 – 2170 MHz / 2300 – 2400 MHz / 2500 – 2690 MHz
25% / 35% / 80% / 65% / 60%
37.0 x 13.0 x 3.3 mm
Why Pharaoh?
60x40 mm-PCB size for OBD trackers
50x40 mm-PCB size for miniature trackers
0 RF-switches required in design
128 KBit/s NBiot protocol
The antenna built for low band LTE certification
A high efficiency surface-mount (SMD) antenna designed to meet 4G/LTE TRP certification requirements on a small ground plane. It edges-out rival antennas with its low band LTE performance – where many designs fail to meet PTCRB and RED TRP specification.
A single, simple matching network
With just a single matching network, you can quickly adjust your matching network for a fast, seamless design cycle. Alternatives on the market require complex switching systems, with specialist RF switches that are susceptible to supply issues.
Easily tuned and optimised
Our product engineers have cleverly devised Pharaoh to provide superb performance in-device. Spend less time making your antenna work well and more time focusing on the features that matter.
Kick-start with our reference design
Pharaoh’s reference design, based on a 60mm PCB, provides high levels of performance in an easy-to-integrate design – minimising the space required on your circuit board.
Pharaoh product brochure
In this brochure:
- Pharaoh product specification
- Pharaoh certifications
- Pharaoh antenna efficiency
