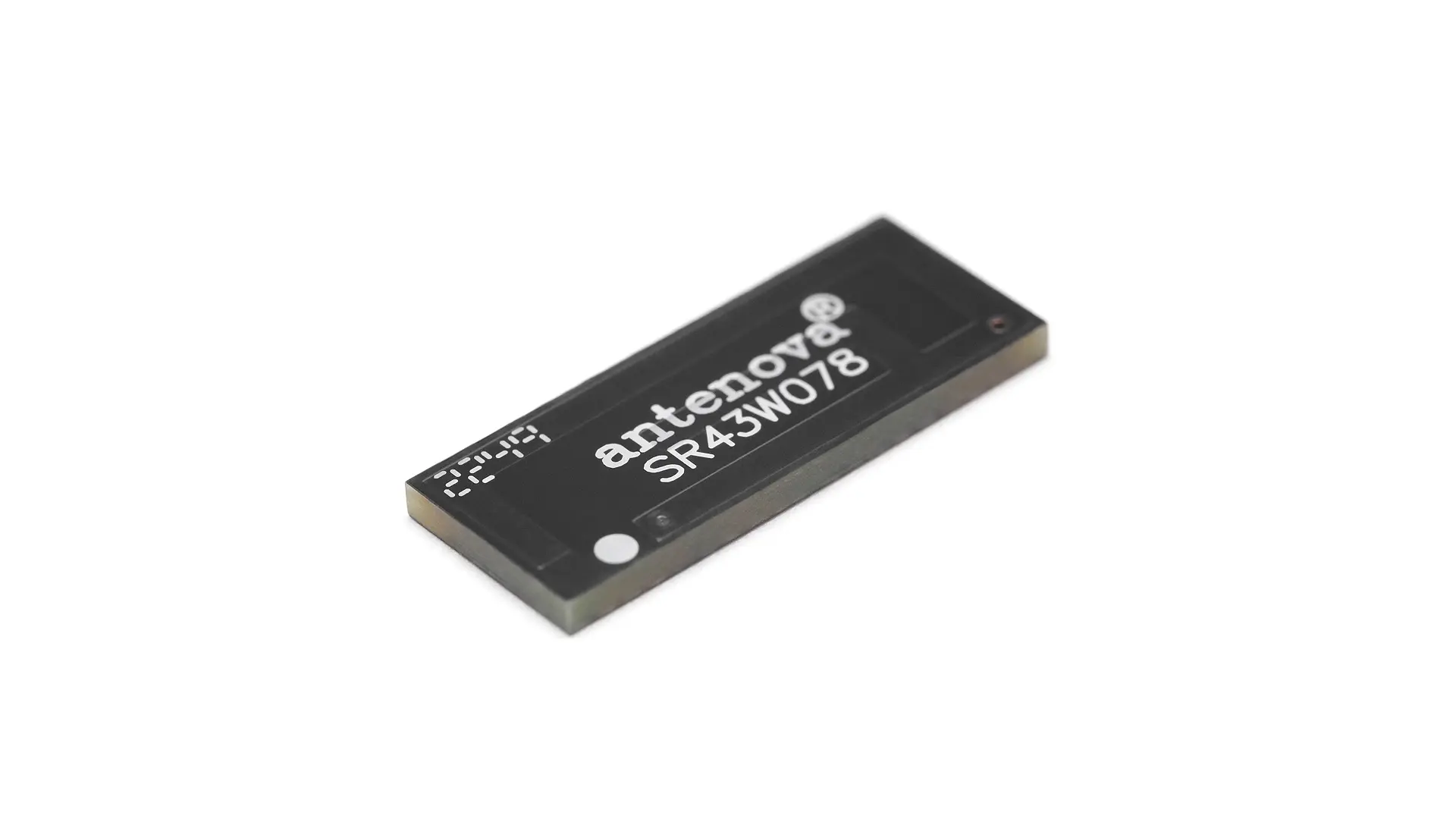

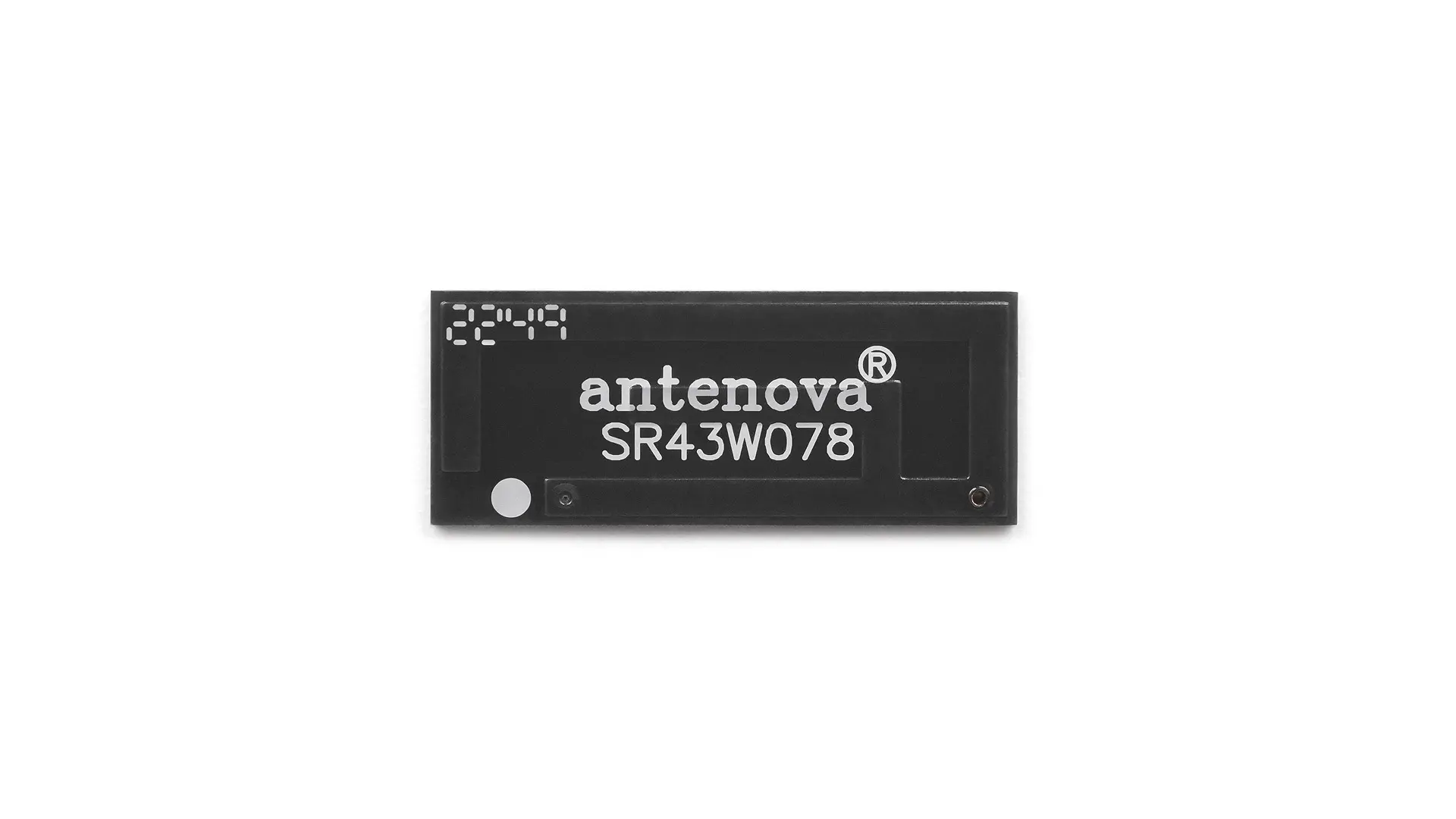

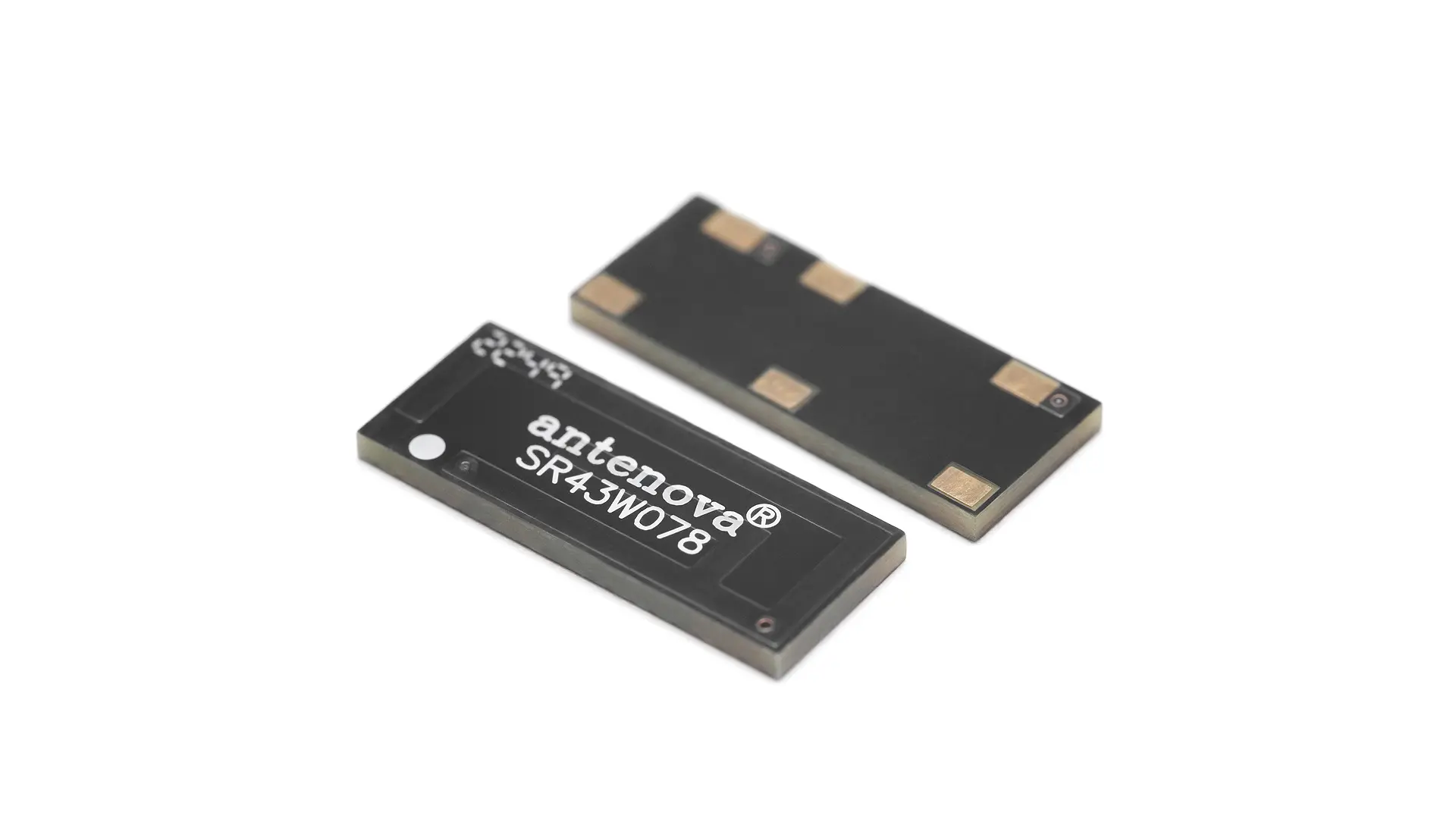

SR43W078 - Embedded 2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR43W078 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 15.0 × 6.0 × 1.0 |
| Operating temperature | -40 °C to +85 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Frequency (MHz) | 2400-2500, 4900-5900, 5925-7125 |
|---|---|
| Return Loss (dB) | ~-10.0, ~-7.5, ~-7.5 |
| VSWR | ~2.0:1, ~2.45:1, ~2.45:1 |
| Efficiency (%) | ~69,~60,~62 |
| Average Gain (dB) | ~-1.6,~-2.6,~-2.1 |
| Peak Gain (dBi) | ~2.9,~4.7,~4.9 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Billi is a Surface Mount Wi-Fi6E antenna with high efficiency within a small area. The Billi antenna is designed for automated assembly. The antenna covers the Wi-Fi6E & WiFi7 bands: 2.4-2.5 GHz, 4.9-5.9GHz and 5.925-7.125GHz
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
WIFI 6E / WIFI 7 Antenna
4.9 dBi WIFI Peak Gain
up to 69% WIFI Efficiency
Applications
Embedded Antenna Solutions
Wearables
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
