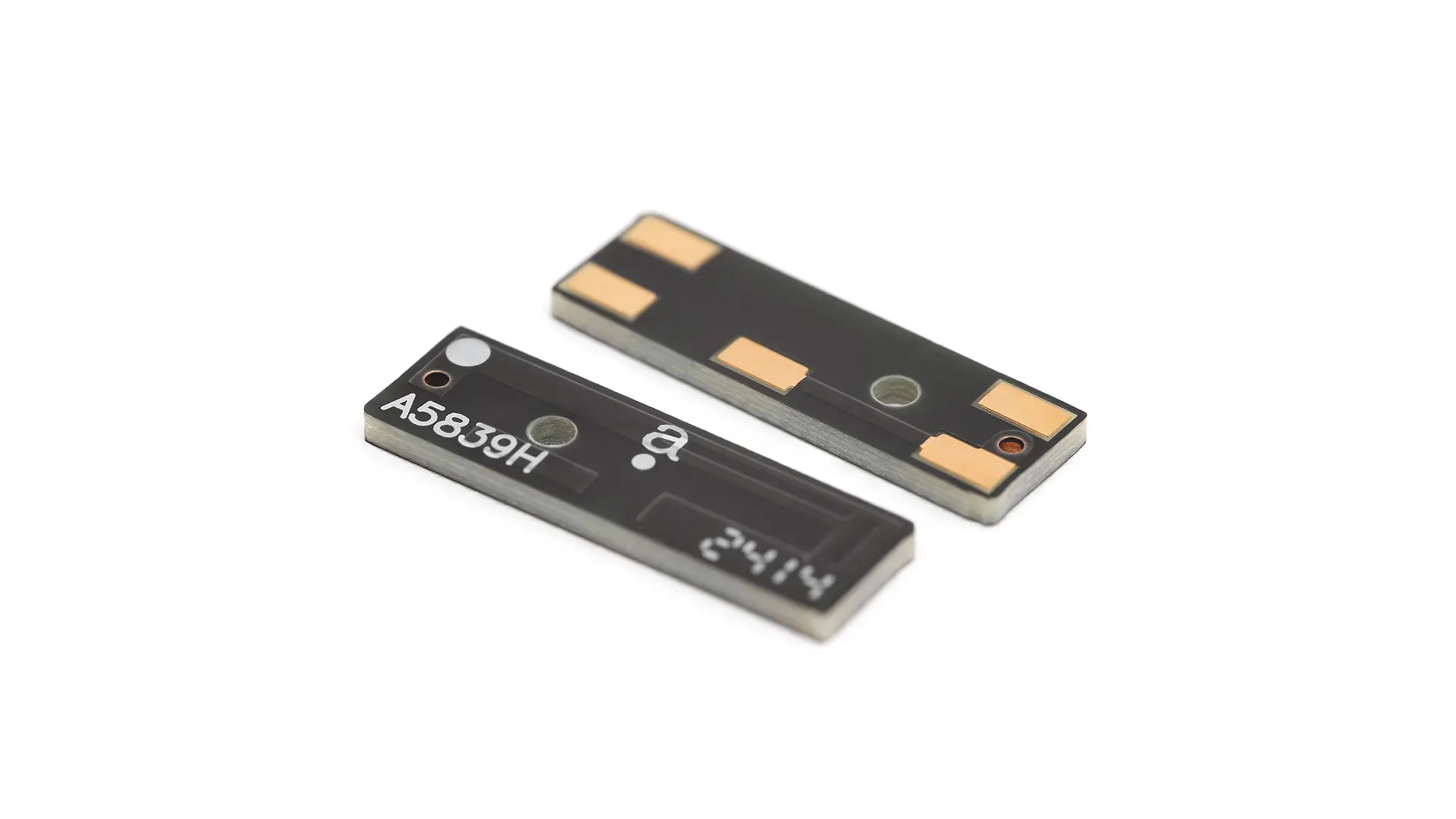

Rufa-L
A5839H - Embedded 2.4 GHz WIFI / Bluetooth® / ZigBee / ISM Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Mounting | Surface Mount |
|---|---|
| Product P/N | A5839H |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 12.8 × 3.9 × 1.1 |
| Operating temperature | -40 °C to +140 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Frequency (MHz) | 2400-2500 |
|---|---|
| Return Loss (dB) | ~-11.0 |
| VSWR | ~1.8:1 |
| Efficiency (%) | ~75 |
| Average Gain (dB) | ~-1.2 |
| Peak Gain (dBi) | ~2.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Low profile antenna for 2.4 – 2.5GHz applications, that needs clearance under the antenna. Available in left- (A5839H) and right-hand (A5887H) options.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
up to 75% WIFI Efficiency
2.1 dBi WIFI Peak Gain
Applications
Embedded Antenna Solutions
Wearables
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
