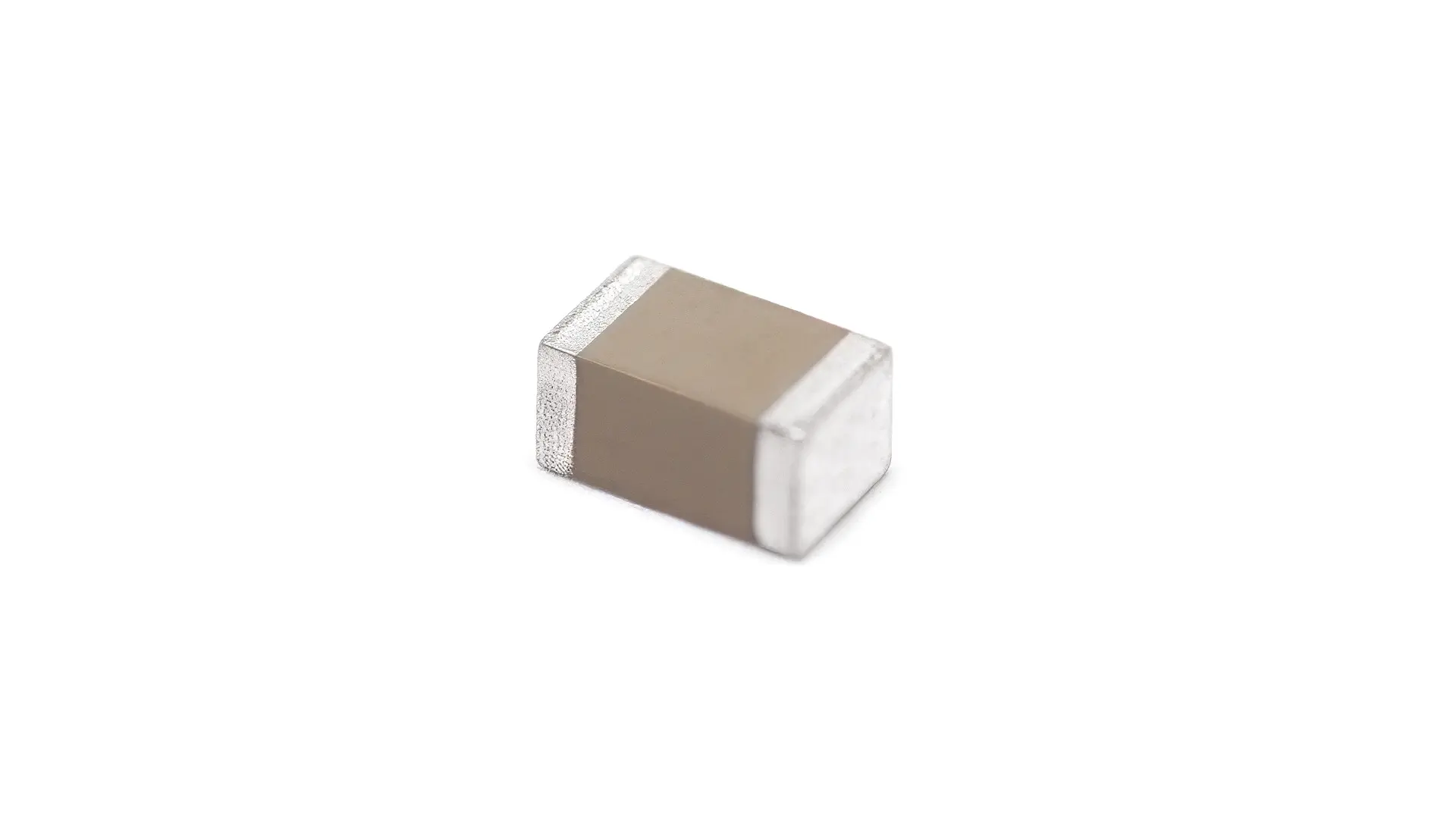

Sharpi
SRC5G027 - Embedded 5.0 GHz WIFI / ISM Passive Ceramic Chip Surface Mount SMD Antenna
Connections (1)
1×
5.0 GHz WIFI / ISM
| Mounting | Surface Mount |
|---|---|
| Product P/N | SRC5G027 |
| Antenna type | Passive Ceramic Chip |
| Dimensions (mm) | 1.0 × 0.5 × 0.5 |
| Operating temperature | -40 °C to +125 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
5.0 GHz WIFI / ISM
| Frequency (MHz) | 4900-5900 |
|---|---|
| Return Loss (dB) | ~-6.0 |
| VSWR | ~3.0:1 |
| Efficiency (%) | ~60 |
| Average Gain (dB) | ~-2.5 |
| Peak Gain (dBi) | ~3.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A ceramic antenna for Wi-Fi applications in the 5GHz band, (802.11a/ac) and needs a small ground plane.
Key Features
Passive Ceramic Chip Antenna
Ground Plane Dependent
3.5 dBi WIFI Peak Gain
up to 60% WIFI Efficiency
Applications
Smart Home
Wearables
Entertainment and Multimedia
Smart Cities
Medical and Healthcare
Drone Operation
Gaming and Virtual Reality
Retail Services
Transportation
GIS - Geographic Information System
Hazard Mitigation
Machine Control
Automation
Defense
Logistics
Asset Tracking and Security
Location Based Services
Civil Applications
Autonomous Applications
Mobile Applications
Home Applications
Public Wi-Fi
Automotive
Data Processing
Remote Monitoring and Control
Wireless Security System
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Manufacturing
Video Streaming
Short-Range Personal Area Networks
Digital Signage
Routers
Gateways & Data Terminals
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
RFID devices
V2X - Vehicle to Everything
