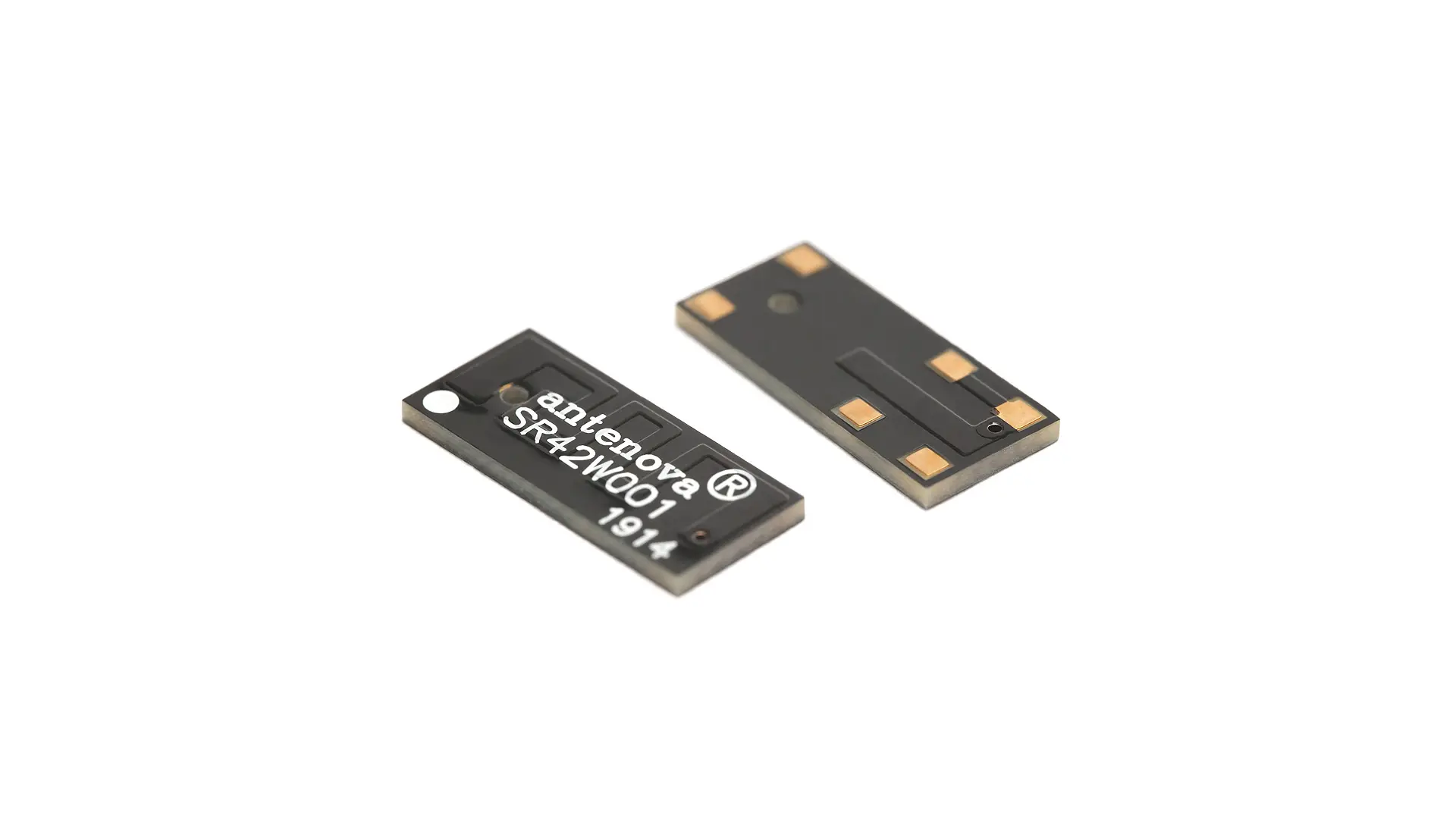

SR42W001 - Embedded 2.4 / 5.0 GHz WIFI / ZigBee / ISM Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR42W001 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 11.3 × 5.0 × 0.8 |
| Operating temperature | -40 °C to +140 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Frequency (MHz) | 2400-2500, 4900-5900 |
|---|---|
| Return Loss (dB) | ~-12, ~-6 |
| VSWR | ~1.5:1, ~2.7:1 |
| Efficiency (%) | ~75,~65 |
| Average Gain (dB) | ~-0.5, ~-2.5 |
| Peak Gain (dBi) | ~2.0, ~3.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
For all dual-band Wi-Fi applications including the 802.11a/b/g/j/n/ac standard. Supports high-speed data processing and video streaming in small wireless devices.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
Dual Band 2.4 / 5.0 GHz WIFI Antenna
3.0 dBi WIFI Peak Gain
up to 75% WIFI Efficiency
