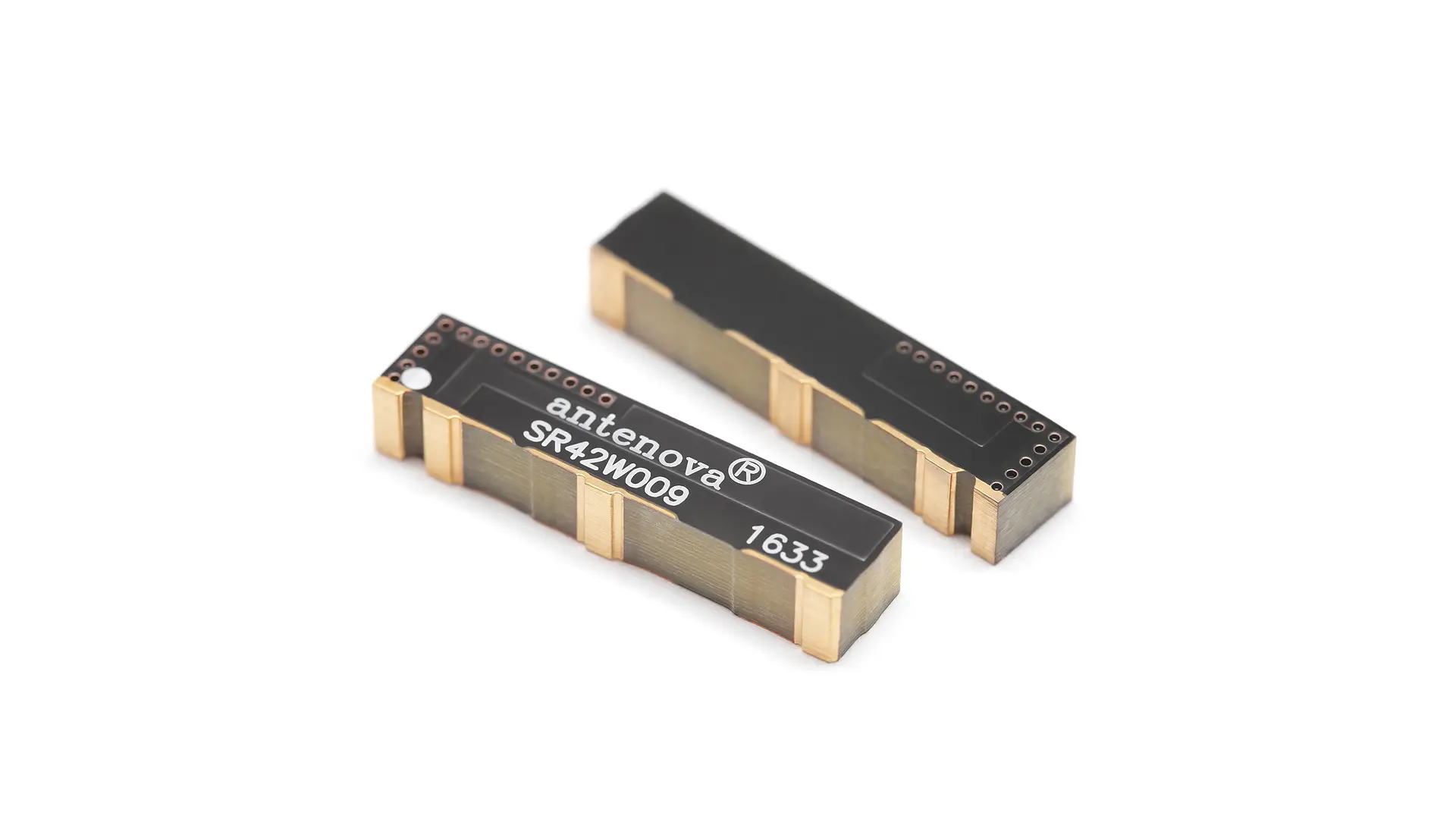

SR42W009 - Embedded 2.4 / 5.0 GHz WIFI / ZigBee / ISM Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR42W009 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 19.3 × 3.3 × 4.4 |
| Operating temperature | -40 °C to +140 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Frequency (MHz) | 2400-2500, 5175-5835 |
|---|---|
| Return Loss (dB) | ~-7, ~-7 |
| VSWR | ~2.7:1, ~2.7:1 |
| Efficiency (%) | ~70,~60 |
| Average Gain (dB) | ~-1.5, ~-2.2 |
| Peak Gain (dBi) | ~5.03, ~5.32 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Antenna for dual-band Wi-Fi applications, which needs a small ground plane, and is placed in a corner with minimal clearance on the PCB. Ideal for IPTV and content streaming devices using the 802.11/ac standard.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
Dual Band 2.4 / 5.0 GHz WIFI Antenna
up to 70% WIFI Efficiency
5.32 dBi WIFI Peak Gain
