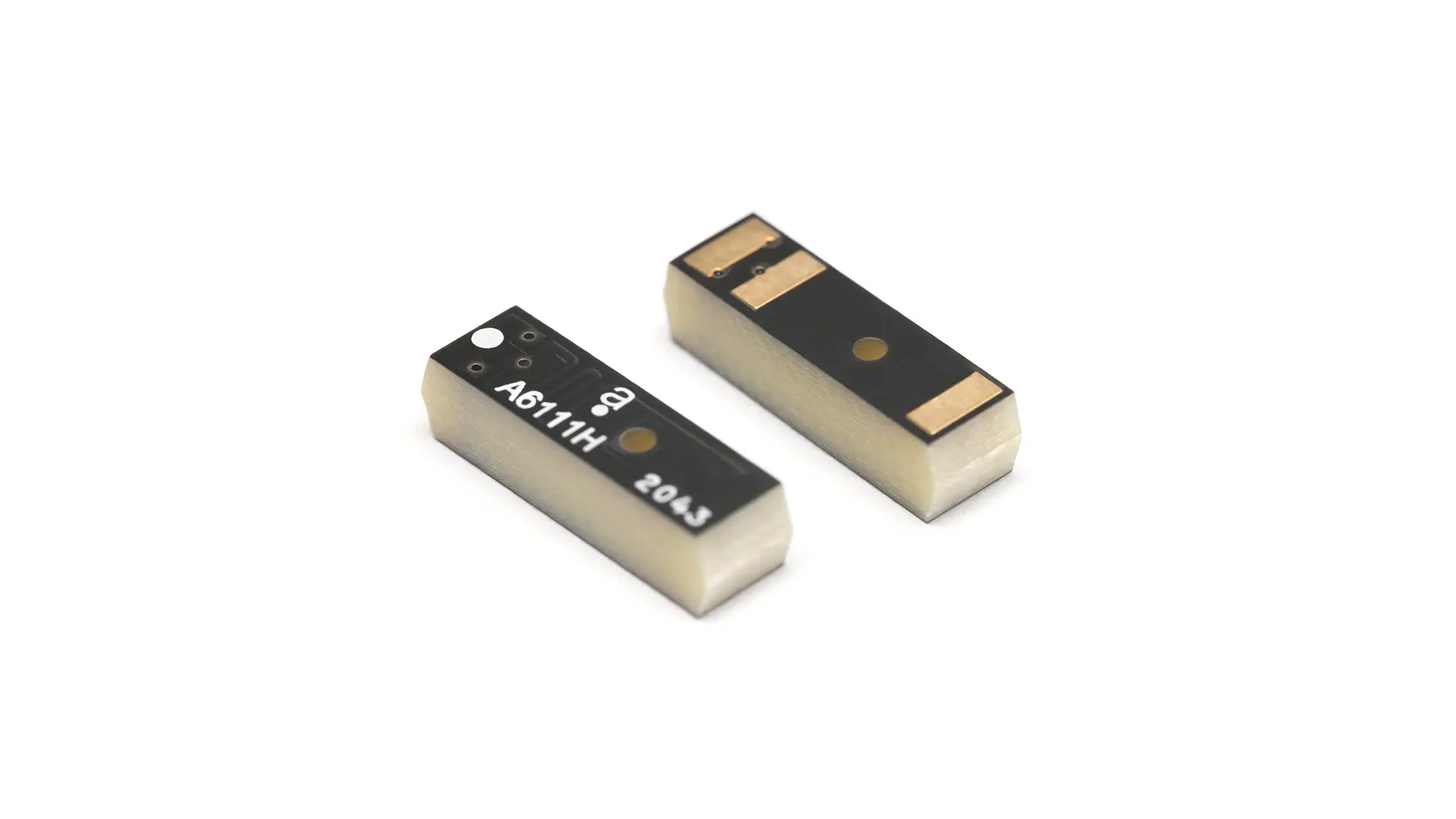

A6111H - Embedded On-Ground 2.4 GHz WIFI / Bluetooth® / ZigBee / ISM Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Mounting | Surface Mount |
|---|---|
| Product P/N | A6111H |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 12.8 × 3.6 × 3.3 |
| Operating temperature | -40 °C to +140 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Frequency (MHz) | 2400-2500 |
|---|---|
| Return Loss (dB) | ~-8.0 |
| VSWR | ~2.3:1 |
| Efficiency (%) | ~45 |
| Average Gain (dB) | ~-3.5 |
| Peak Gain (dBi) | ~0.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Antenna for the 2.4 – 2.5 GHz band with a small form factor.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
0.0 dBi WIFI Peak Gain
up to 45% WIFI Efficiency
On-Ground Antenna - No Clearance required
Applications
Embedded Antenna Solutions
Wearables
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
