Serica

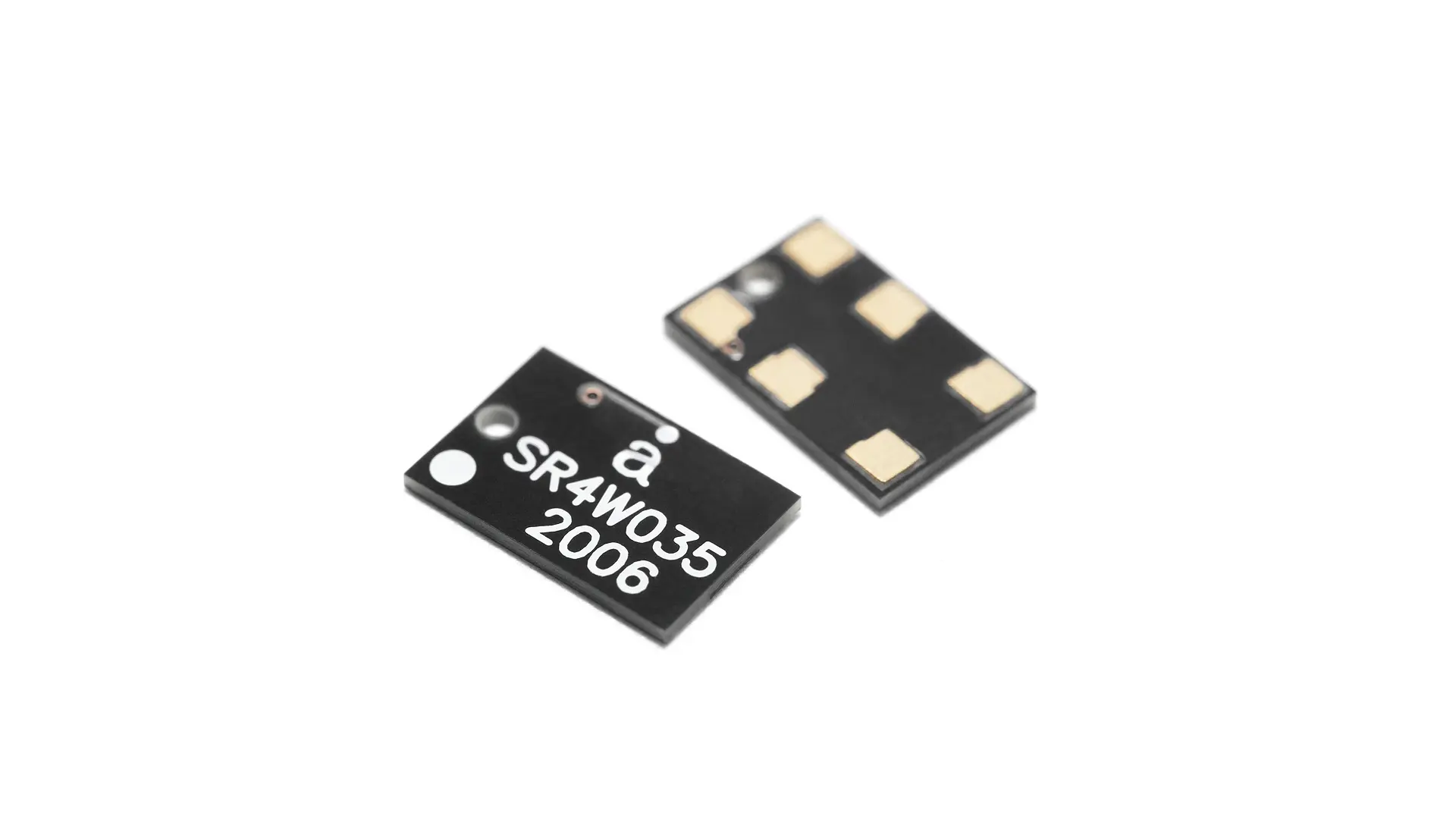

SR4W035 - Embedded 2.4 GHz WIFI / Bluetooth® / ZigBee / ISM Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR4W035 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 6.0 × 4.0 × 0.4 |
| Operating temperature | -40 °C to +140 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Frequency (MHz) | 2400-2500 |
|---|---|
| Return Loss (dB) | ~-10.0 |
| VSWR | ~1.85:1 |
| Efficiency (%) | ~65 |
| Average Gain (dB) | ~-1.5 |
| Peak Gain (dBi) | ~3.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Serica is a small antenna for Bluetooth®, Wi-Fi, ZigBee, and ISM. A useful antenna that doesn’t need to be placed on the corner of a PCB, with a low profile for high performance.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
up to 65% WIFI Efficiency
3.5 dBi WIFI Peak Gain
Applications
Smart Home
Wearables
Entertainment and Multimedia
Smart Cities
Medical and Healthcare
Drone Operation
Gaming and Virtual Reality
Retail Services
Transportation
GIS - Geographic Information System
Hazard Mitigation
Machine Control
Automation
Defense
Logistics
Asset Tracking and Security
Location Based Services
Civil Applications
Autonomous Applications
Mobile Applications
Home Applications
Public Wi-Fi
Automotive
Data Processing
Remote Monitoring and Control
Wireless Security System
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Manufacturing
Video Streaming
Short-Range Personal Area Networks
Digital Signage
Routers
Gateways & Data Terminals
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
RFID devices
