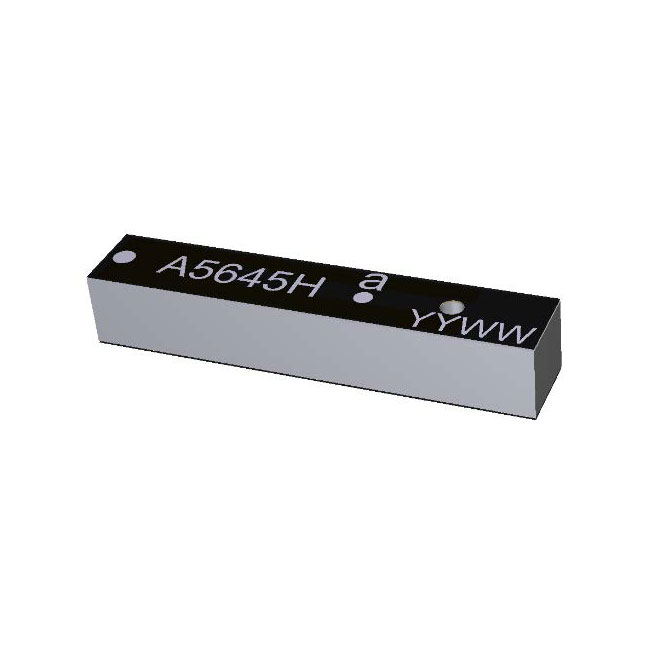

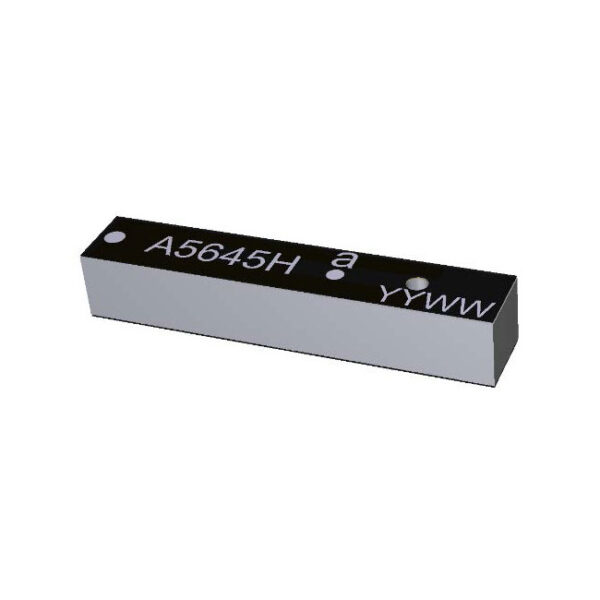

Mica 2.4GHz SMD Antenna
P/N A5645H

antenova-Mica-A5645H
  • Dimensions: 20.5 x 2.6 x 3.3 mm
  • Frequencies: 2.4 - 2.5GHz
  • Polarization: Linear
  • Antenna type: SMD

Mica is a low-profile SMD antenna designed for 2.4GHz applications. This includes Bluetooth, BLE, Wi-Fi (802.11a/b/g/n), ZigBee and more.

It’s designed for use with the ground plane extended beneath the antenna, minimising the footprint of your RF stackup, which makes this antenna perfect for compact wearables, PC-cards and sensors. Mica is available in left- and right-hand variations, allowing for maximum design flexibility.

Downloads

Mica Product Specification
Mica Footprint
Mica 3D Model
Download

Order

Clear

Delivery Information

Antennas and GPS modules - estimated delivery date of 5-7 days

Evaluation boards - estimated delivery date of 7-14 days

* All antennas are sold in packs of 5
