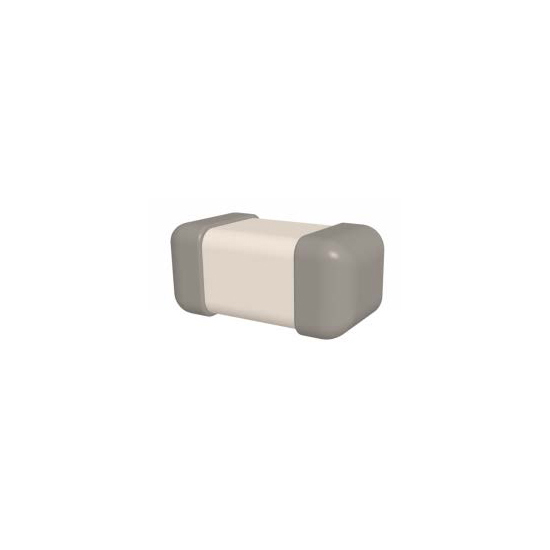

SRC2W006 - Embedded 2.4 / 5.0 GHz WIFI / ZigBee / ISM Passive Ceramic Chip Surface Mount SMD Antenna
Connections (1)
1×
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Mounting | Surface Mount |
|---|---|
| Product P/N | SRC2W006 |
| Antenna type | Passive Ceramic Chip |
| Dimensions (mm) | 1.0 × 0.5 × 0.5 |
| Operating temperature | -40 °C to +140 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Frequency (MHz) | 2400-2500, 4900-5900 |
|---|---|
| Return Loss (dB) | ~-9.2, ~-9.8 |
| VSWR | ~2.20:1, ~1.97:1 |
| Efficiency (%) | ~55,~50 |
| Average Gain (dB) | ~-2.5, ~-2.4 |
| Peak Gain (dBi) | ~1.6, ~4.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A small ceramic antenna for Dual-Band Wi-Fi systems, including MIMO. This tiny antenna is resistant to de-tuning, making it a perfect option in designs with multiple antennas. Requires clearance area of 8x5mm.
Key Features
Passive Ceramic Chip Antenna
Ground Plane Dependent
Dual Band 2.4 / 5.0 GHz WIFI Antenna
4.0 dBi WIFI Peak Gain
up to 55% WIFI Efficiency
Applications
Embedded Antenna Solutions
Wearables
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
