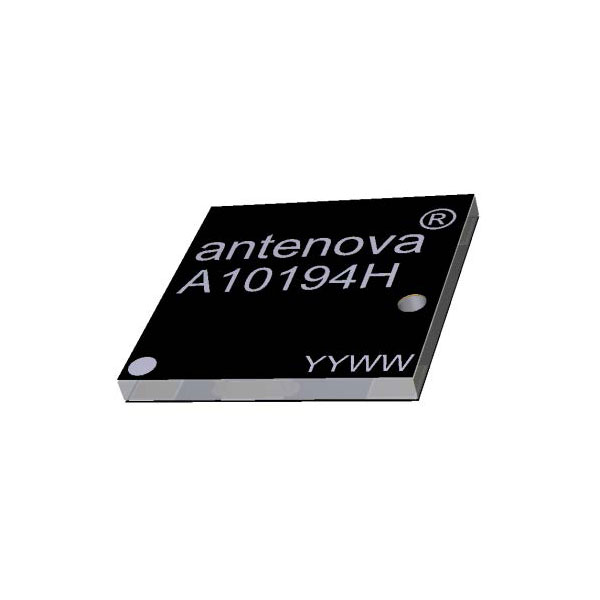

A10194H - Embedded 2.4 / 5.0 GHz WIFI / ZigBee / ISM Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Mounting | Surface Mount |
|---|---|
| Product P/N | A10194H |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 10.0 × 10.0 × 0.9 |
| Operating temperature | -40 °C to +140 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Frequency (MHz) | 2400-2500, 4900-5900 |
|---|---|
| Return Loss (dB) | ~-15, ~-11 |
| VSWR | ~1.4:1, ~1.8:1 |
| Efficiency (%) | ~75,~60 |
| Average Gain (dB) | ~-0.5, ~-2.3 |
| Peak Gain (dBi) | ~1.8, ~4.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Low-profile antenna for 2.4 – 5.9GHz applications – supporting dual-band Wi-Fi applications including 802.11n/MIMO.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
Dual Band 2.4 / 5.0 GHz WIFI Antenna
4.1 dBi WIFI Peak Gain
up to 75% WIFI Efficiency
Applications
Embedded Antenna Solutions
Wearables
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
