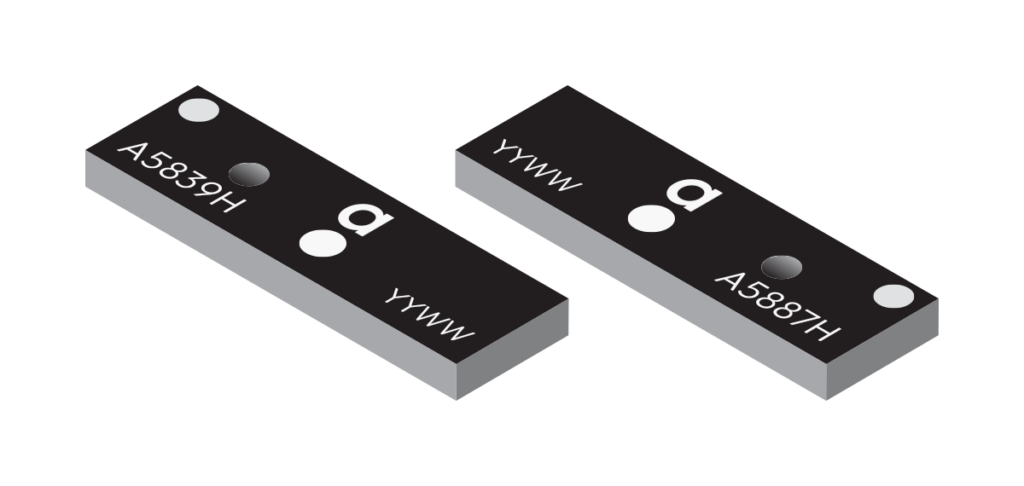

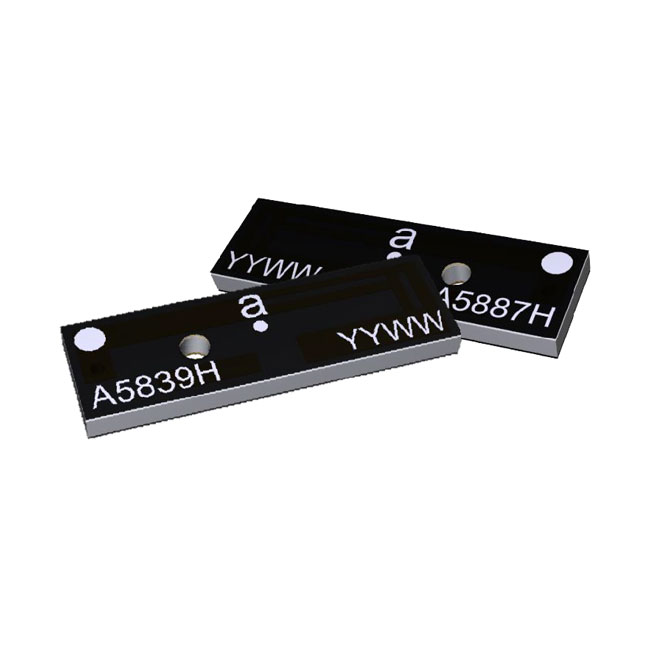

Rufa is an easy to integrate, low profile, high efficiency, SMD antenna designed for 2.4GHz applications. The antenna uses a ground plane to radiate, but this must not extend beneath the antenna itself. For design flexibility, Rufa is available in left- (A5839H) and right-hand (A5887H) variations.
Download the product specification below for detailed RF characteristic data.
|Rufa Product Specification|
|Rufa (Left) Footprint & 3D Model|
|Rufa (Right) Footprint & 3D Model|
Antennas and GPS modules - estimated delivery date of 5-7 days
Evaluation boards - estimated delivery date of 7-14 days
* All antennas are sold in packs of 5
