Amoris

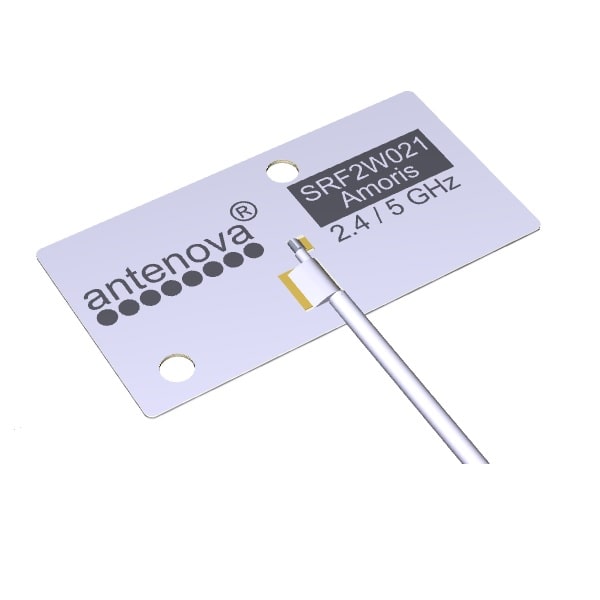

SRF2W021 - Internal 2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM Passive Self-Adhesive Flexible PCB Antenna
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRF2W021-100 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 27.0 × 14.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
| Note | Default Cable Length is 100mm |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Frequency (MHz) | 2400-2500, 4900-5900, 5925-7125 |
|---|---|
| Return Loss (dB) | ~-14.1, ~-7.9, ~-6.5 |
| VSWR | ~1.5:1, ~2.3:1, ~2.8:1 |
| Efficiency (%) | ~67,~70,~63 |
| Average Gain (dB) | ~-1.7, ~-1.6, ~-2.0 |
| Peak Gain (dBi) | ~2.8, ~4.3, ~4.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A self-adhesive FPC antenna for use with Tri-Band Wi-Fi. The antenna is available in three standard cable lengths with an MHF IPEX connector. Other cable lengths are available but require minimum order quantities.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
WIFI 6E / WIFI 7 Antenna
4.8 dBi WIFI Peak Gain
up to 70% WIFI Efficiency
Customizable Cable and Connector
Applications
Embedded Antenna Solutions
Wearables
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
